NEVADA REGISTERED ENTITY • 2026
FACILITY: 5445 E N BELT RD
PLANT: CLARK COUNTY, NEVADA

Erect.

Industrial steel-frame housing modules deployed for bulk subdivisions and master-planned communities. Boxabl manufactures standardized residential living units from 361 to 800 sq ft on an automated assembly line in Las Vegas, Nevada. We supply volume modules directly to developers or contract full turnkey community construction across graded parcels.

Factory Module Unit $60,000–$110,000 USD ex-factory Las Vegas plant
Turnkey Development $150,000–$210,000 USD per completed home site
Unit Footprints 361–800 sq ft Single-family & stacked apartments
Deployment Crew Boxabl Crew Active since 2026 operations

Assemble.

Every home starts as a rigid cold-formed structural steel chassis fabricated inside our Las Vegas production facility at 5445 E N Belt Rd. Unlike conventional stick-built framing exposed to thermal expansion and desert weather variances, Boxabl modules are assembled in a controlled environment to millimeter mechanical tolerances.

The patented folding envelope packs onto a standard commercial highway flatbed without requiring highway pilot escorts or oversize routing permits. Once on site, mechanical hinges allow the exterior walls and structural roof envelope to unfold into a 361 to 800 sq ft residential structure in a single workday.

DIAGRAM: SCROLL-DRIVEN ENVELOPE UNFOLDING SEQUENCE SCALE: 1:50 TECHNICAL ELEVATION
Transport Width
8.5 FT (Standard Flatbed)
Unfolded Footprint
361–800 SQ FT
Deployment Mechanism
Integrated Steel Hinges
Structural Frame
Cold-Formed ASTM Steel

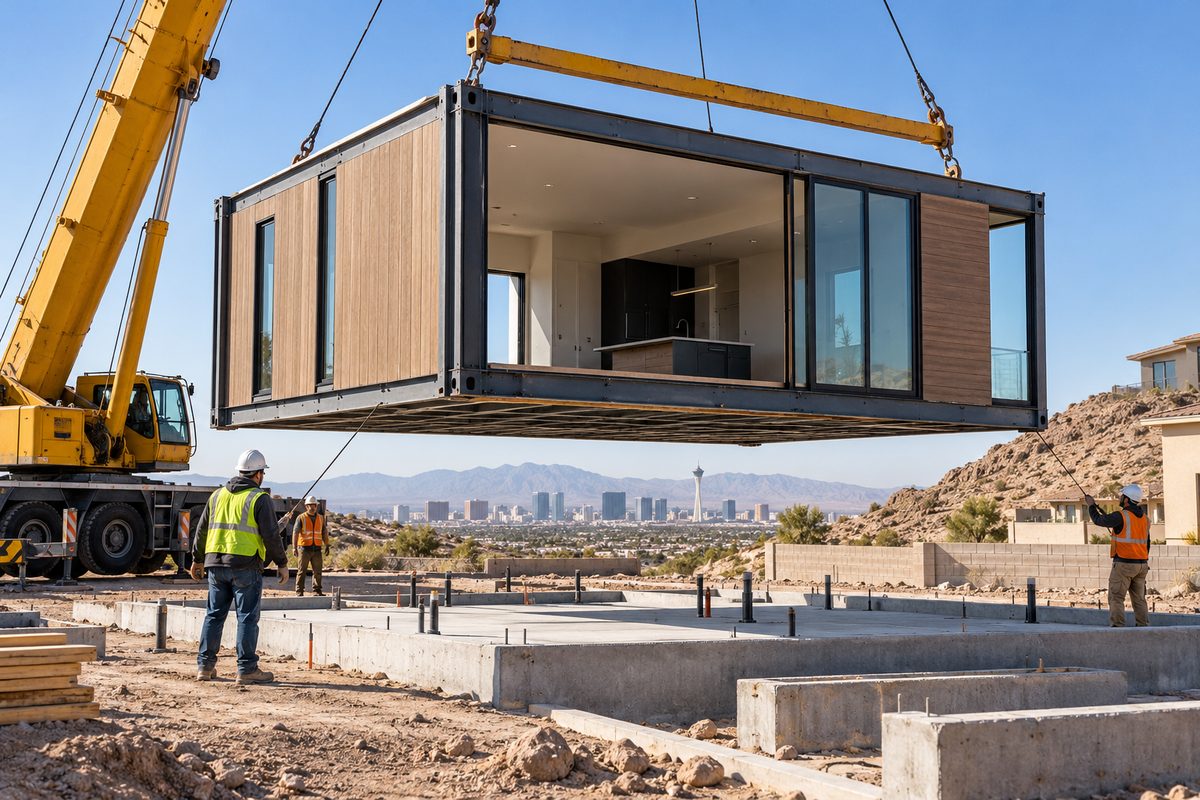

Commercial crane lowering a Boxabl steel modular unit onto an engineered foundation
JOB SITE DEPLOYMENT: COMMERCIAL CRANE LOWERING STEEL CORE ONTO SLAB LAS VEGAS CREW OPERATIONS

Standardize.

Industrial efficiency collapses when developers demand arbitrary alterations to floor plates, ceiling drops, or custom rough-in locations. Boxabl strictly offers standardized 361 to 800 sq ft layouts. Every 200-amp electrical panel and PEX plumbing harness is anchored to identical mechanical coordinates on the line.

This manufacturing repeatability gives institutional community operators fixed pricing baselines. Factory modules sit firmly at $60,000 to $110,000 USD per home before freight and site preparation. Turnkey community deployments run $150,000 to $210,000 USD per completed home with civil grading, engineered concrete slab foundations, crane pick, and Boxabl crew mechanical connections included.

Deploy.

We contract with master-planned community builders, municipal housing authorities, and private multi-family developers under two clearly demarcated scopes of work:

Factory Module Only ($60,000–$110,000 USD per home): We fabricate the folding structural steel modules in Las Vegas and load them onto commercial freight carriers. Your licensed general contractor manages the grading, concrete foundation, crane pick, and local municipal utility connections.

Turnkey Community Development ($150,000–$210,000 USD per home): The dedicated Boxabl crew assumes total operational responsibility on site. We coordinate the civil site survey, excavate and pour the reinforced concrete foundation, execute flatbed logistics, crane the units into exact coordinates, unfold the envelope, and secure water, power, and sewer tie-ins under Nevada license standards.

Operational Scope Factory Module Only Turnkey Community Development
Base Price Parameter $60,000–$110,000 USD / home $150,000–$210,000 USD / home
Structural Steel Chassis Included (Las Vegas Plant) Included (Las Vegas Plant)
Interior Electrical & Plumbing Pre-wired 200A harness & wet wall Pre-wired 200A harness & wet wall
Freight Logistics Quoted per project mileage Included within project radius
Civil Site Grading & Foundation By Purchaser General Contractor By Boxabl Field Crews
Crane Rigging & Placement By Purchaser Crane Subcontractor Managed by Boxabl Crew
Envelope Unfold & Weather Seal Purchaser Builder Certification Certified Boxabl Technicians
Utility Interconnects (Wet/Dry) By Local Trade Contractors Included to site boundary points

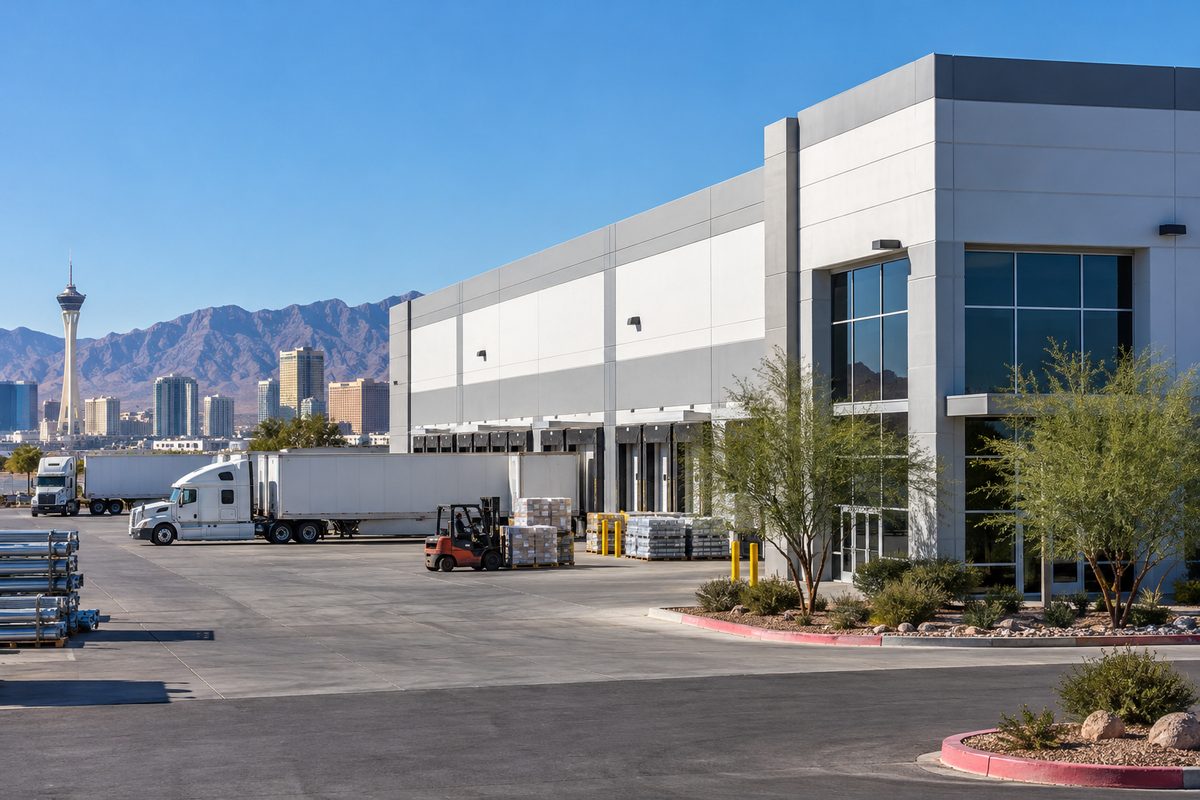

Exterior of Boxabl manufacturing and staging facility at 5445 E N Belt Rd in Las Vegas Nevada
MANUFACTURING HEADQUARTERS • 5445 E N BELT RD, LAS VEGAS, NEVADA 89115 COMMERCIAL FREIGHT STAGING YARD

Execute.

Civil developments fail when timing between site grading contractors and delivery trucks drifts out of alignment. Our sequence eliminates idle transit staging:

Civil Verification. We confirm stem-wall or monolithic slab anchor bolts against digital laser coordinates before flatbeds depart Las Vegas.

Freight Dispatch. Standard flatbeds transit directly to the job site. Units do not require specialized wide-load routing permits.

Rig and Pick. A 60-ton hydraulic mobile crane hoists the unit using four pre-engineered lift lugs on the structural chassis.

Lock and Tie. Mechanical hinge pins engage, exterior roof seams seal with industrial elastomeric barriers, and mechanical tie-ins connect to foundation stub-outs.

Verify.

Boxabl is registered as a Nevada commercial corporation, operating continuously since 2026. All engineering calculations, welding protocols, and structural assembly lines are centered at our single 5445 E N Belt Rd facility in Las Vegas.

We do not subcontract our factory floor work to third-party overseas assemblers. The dedicated Boxabl crew oversees structural frame cold-forming, MEP integration, flatbed staging, and site deployment. Our structural steel design meets stringent international building code criteria:

Engineering Metric Boxabl Standard Specification Code Verification Basis
Chassis Frame Material Cold-formed ASTM A1008 structural steel Engineered tensile load certs
Design Wind Velocity 115+ MPH basic wind speed rating ASCE 7-16 structural calculations
Seismic Design Category Category D compliant structural tie-downs IBC Chapter 16 compliance
Roof Snow Load 40 PSF ground snow load capacity Uniform cold-region ratings
Exterior Fire Classification Class A non-combustible exterior skin ASTM E119 flame spread standards
Thermal Envelope R-25 continuous foam core wall panels IECC energy conservation code
Electrical Harness 200-Amp master breaker, copper conduit NEC 2023 certified layout

Refuse.

We operate an industrial manufacturing facility, not a boutique custom carpentry shop. Being clear on what Boxabl will not do protects developer timelines:

We do not build custom timber stick framing. Everything that exits our facility is cold-formed structural steel. If your project mandates dimensional lumber, Boxabl is not the appropriate partner.

We do not alter interior floor plans for single-unit orders. Customizing electrical outlet locations or shifting bathroom walls destroys production line speed. Sizing is strictly 361 to 800 sq ft modules.

The commonest failure mode: The single most frequent point of job site delay in modular developments is uncoordinated civil foundation work prior to delivery. If an external concrete contractor pours anchor bolts out of square by more than 0.25 inches, the structural steel chassis will not seat cleanly. On turnkey contracts, Boxabl crews manage this risk directly. On module-only orders, the general contractor must laser-verify anchor points before shipment.

Inquire.

Direct development intake for commercial landowners, residential developers, and institutional housing authorities. The Boxabl Developments team reviews parcel layout, required unit counts, utility capacity, and timeline feasibility from our Las Vegas desk.

Pricing is strictly non-binding and confirmed following engineering review: factory modules sit between $60,000 and $110,000 USD per home; turnkey developments range from $150,000 to $210,000 USD per home based on model, size, site parcel, assembly, delivery, and site preparation.

DEVELOPMENT INTAKE FORM ONLINE
Please provide your full legal or representative name.
Please enter a valid business email address.
Please enter a valid telephone number with area code.
You must confirm agreement with our data processing terms to submit your inquiry.
Commercial Notice: Catalog submissions constitute preliminary development intake. Quotes depend on model, size, site parcel, assembly, delivery, and site preparation. Binding contracts require civil engineering assessment, foundation engineering verification, and freight mileage review. Advertising traffic runs via Google Ads (gclid), Microsoft Advertising (msclkid; view Microsoft Privacy Statement), and Meta Ads (fbclid).
HEADQUARTERS & ASSEMBLY VERIFIED
Legal Entity: Boxabl (Registered in Nevada, 2026)
Plant Address: 5445 E N Belt Rd, Las Vegas, Nevada 89115
Direct Telephone: 702-555-0199
Intake Email: [email protected]
Currency: USD (United States Dollar)
Lead Time: By project contract
Group Size: By contract

10-Year Structural Frame Warranty
